EC240 Vol-vo Excavator Swing Motor VOE 14577125 VOE 14633637
VOE14577125 Vol-vo EC240 New M5X180 EC250D VOE14633637 Excavator Swing Drive Motor Swing Motor Assy TGFQ
| |
| Model: EC240 New M5X180 EC250D | egory: Excavator Swing Motor |
| Brand: TGFQ | Place of Origin: China |
| Part Number: VOE14577125 / VOE14633637 | Payment Term: L/C, T/T, D/P, D/A |
| Delivery Time: 1-3 days (after receive the payment) | Means of Transport: By Sea, By Air or By Express |
| Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping. |

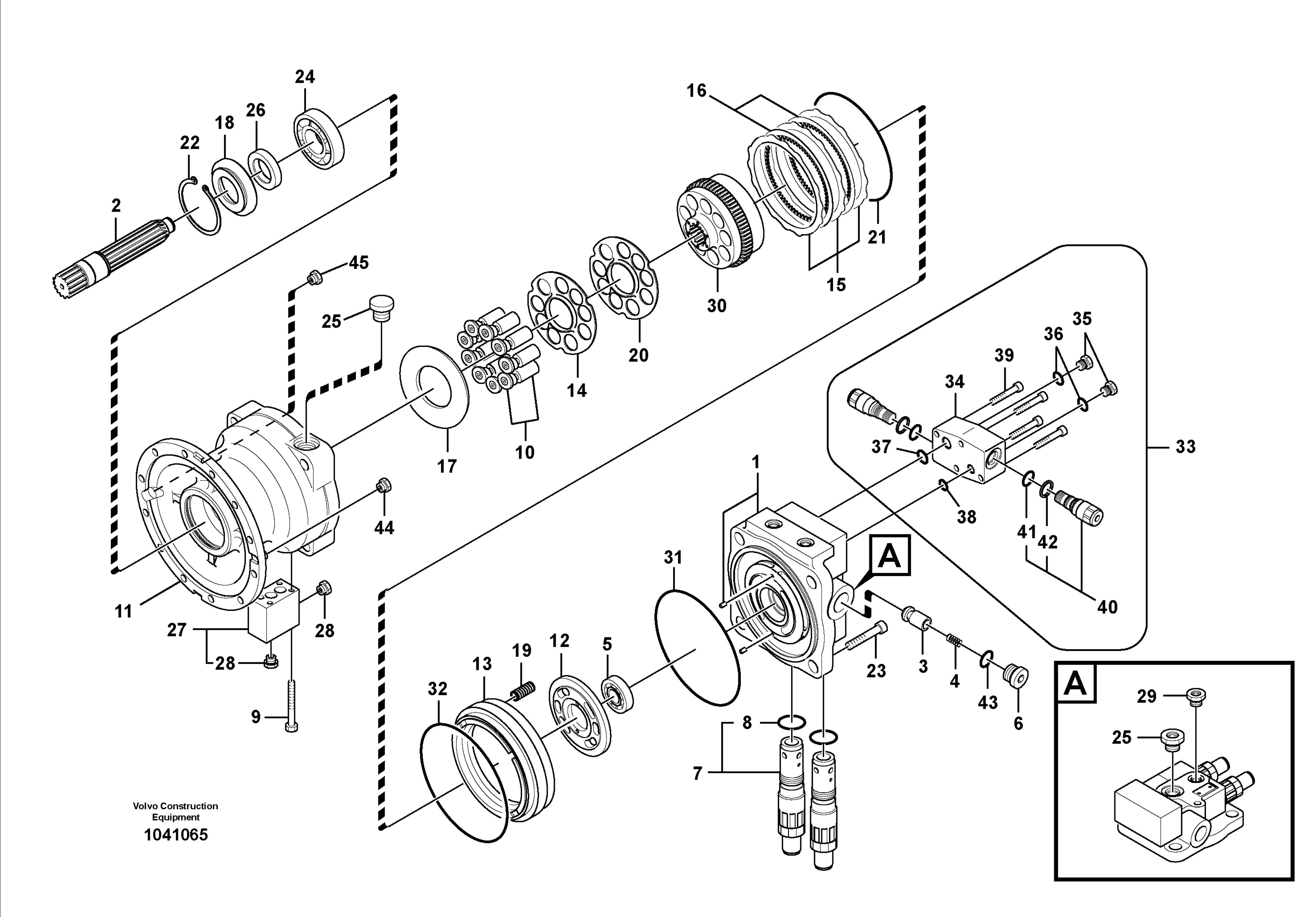

Drawing:
| Pos. | Part No | Qty | Parts name |
| | VOE14577125 | [1] | Swing motor |
| 1 | VOE14600787 | [1] | Casing |
| 1 | SA8230-25950 | [2] | Spring Pin |
| 2 | VOE14596320 | [1] | Shaft |
| 3 | VOE14501798 | [2] | Plunger |
| 4 | VOE14501799 | [2] | Spring |
| 5 | VOE14600785 | [1] | Roller bearing |
| 6 | VOE14501802 | [2] | Plug |
| 7 | VOE14518516 | [2] | Relief valve |
| 8 | VOE990582 | [1] | O-ring |
| 9 | VOE14511643 | [3] | Screw |
| 10 | VOE14596323 | [9] | Piston |
| 11 | | [1] | Casing |
| 12 | VOE14596315 | [1] | Plate |
| 13 | VOE14562617 | [1] | Piston |
| 14 | VOE14596317 | [1] | Plate |
| 15 | VOE14594770 | [3] | Plate |
| 16 | VOE14596308 | [2] | Plate |
| 17 | VOE14596316 | [1] | Plate |
| 18 | VOE14596313 | [3] | Cover |
| 19 | VOE14596309 | [20] | Spring |
| 20 | VOE14596318 | [1] | Spring |
| 21 | SA8230-25551 | [1] | O-ring |
| 22 | VOE14596312 | [1] | Ring |
| 23 | SA8230-25820 | [4] | Bolt |
| 24 | VOE14596311 | [1] | Roller bearing |
| 25 | SA14594354 | [3] | Plug |
| 26 | VOE14562616 | [1] | Seal |
| 27 | VOE14550664 | [1] | Valve |
| 28 | VOE14594353 | [2] | Plug |
| 29 | VOE14600784 | [1] | Plug |
| 30 | VOE14596319 | [1] | Cylinder |
| 31 | VOE14562615 | [1] | O-ring |
| 32 | SA8230-33960 | [1] | O-ring |
| 33 | VOE14550662 | [1] | Valve |
| 34 | VOE14550661 | [1] | Casing |
| 35 | VOE14550218 | [2] | Plug |
| 36 | SA8230-26191 | [2] | O-ring |
| 37 | VOE14529757 | [2] | O-ring |
| 38 | VOE14533603 | [2] | O-ring |
| 39 | SA8240-03610 | [4] | Screw |
| 40 | VOE14684415 | [2] | Valve |
| 41 | VOE983509 | [1] | O-ring |
| 42 | VOE14625240 | [1] | Ring |
| 43 | VOE983530 | [2] | O-ring |
| 44 | VOE14600784 | [1] | Plug |
| 45 | SA8240-03280 | [2] | Plug |
| 100 | VOE14601385 | [1] | Sealing kit |
