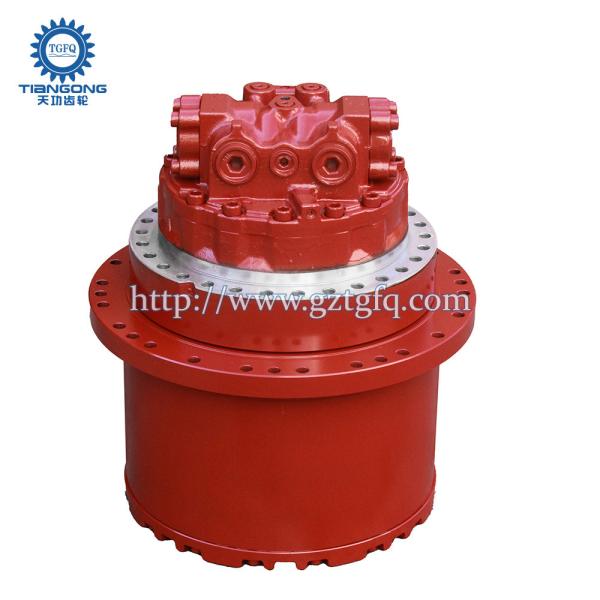

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

Brand Name : TGFQ

Model Number : SK250-8 E215B/E235B

Place of Origin : CHINA

MOQ : 1

Price : 1000.00-5000.00usd

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 50 pcs / month

Delivery Time : Depends On Order

Packaging Details : NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Brand : TGFQ

Product Name : Travel Motor Assy

Outer Packing : wooden case

Delivery Port : Huangpu Port

Applicable Industries : Machinery Repair Shops, Energy & Mining

Contact Now

SK260-8 final device Kobelco Excavator Travel Device Assy E215B/E235B LQ15V00020F1

PRODUCT DESCRIPTION
Model: SK250-8
egory: Excavator Final Drive
Brand: TGFQ
Type: MAG170VP-3800G-10
Part Number: YN15V00051F5 / LQ15V00020F1 / LQ15V00020F2 / LQ15V00020F3
Inventory: In stock
Color: Red
Holes: 30/30Holes
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

Kobelco Excavator Travel Device Assy SK250-8 LQ15V00020F1​

E215B/E235B LQ15V00020F1

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

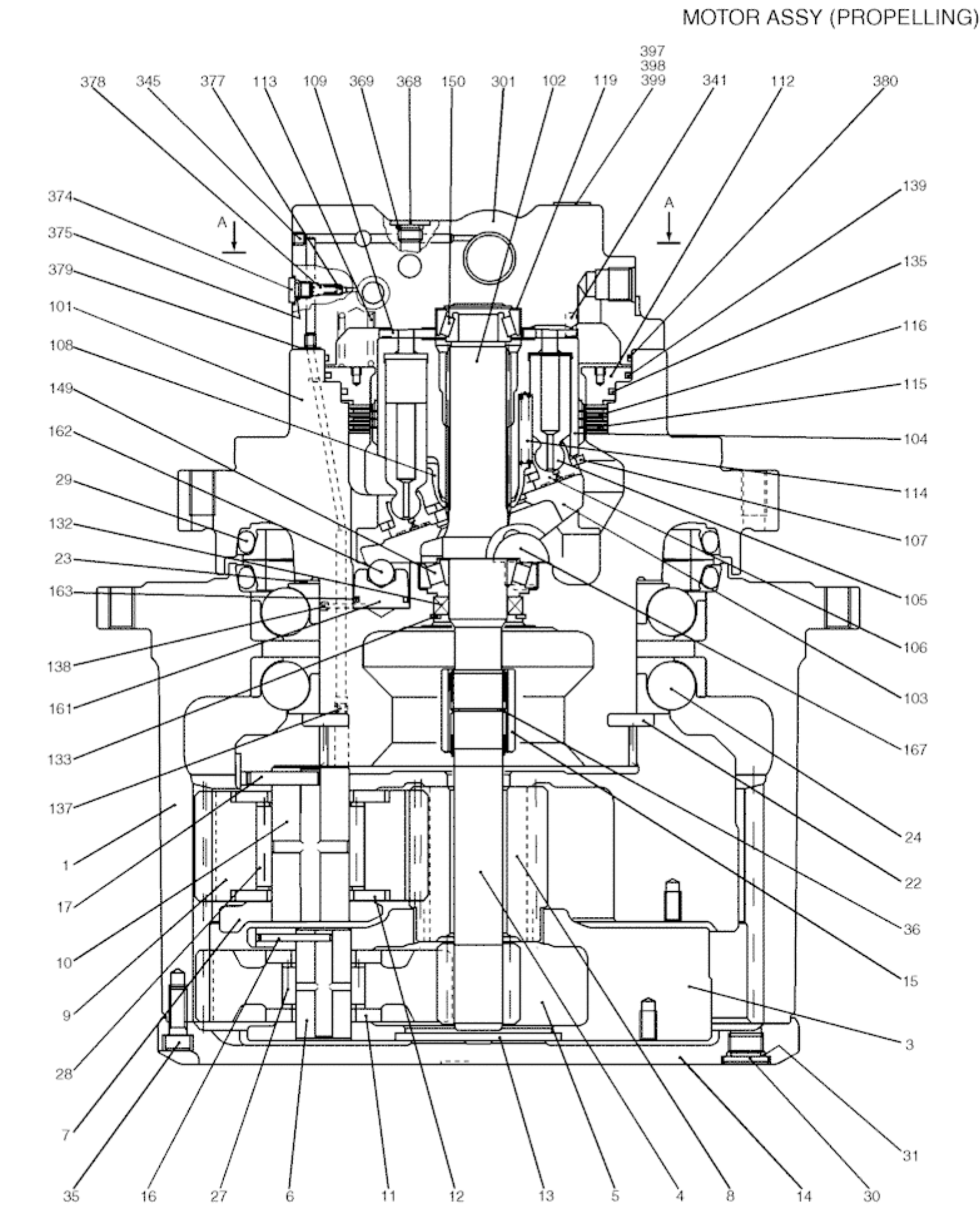

1 YN15V00037S001 [1] HUB KOB Hub
3 YN15V00037S003 [1] FLANGE KOB Carrier
4 YN15V00037S004 [1] GEAR KOB Sun
5 YN15V00037S005 [3] GEAR KOB Planetary
6 YN15V00037S006 [3] PIN KOB Carrier
7 YN15V00037S007 [1] GEAR KOB Carrier
8 YN15V00037S008 [1] GEAR KOB Sun
9 YN15V00037S009 [3] GEAR KOB Planetary
10 YN15V00037S010 [3] PIN KOB Carrier
11 YN15V00037S011 [6] WASHER KOB Thrust
12 YN15V00037S012 [6] WASHER KOB Thrust
13 YN15V00037S013 [1] PLATE KOB Thrust
14 YN15V00037S014 [1] COVER KOB
15 YN15V00037S015 [1] COUPLING KOB
16 YN15V00037S016 [3] PIN KOB Parallel
17 YN15V00037S017 [3] PIN KOB Parallel
22 YN15V00037S022 [2] LOCK WASHER KOB
23 YN15V00037S023 [1] SHIM KOB
24 YN15V00037S024 [2] BALL BEARING KOB Ball
27 YN15V00037S027 [3] ROLLER BEARING KOB Needle
28 YN15V00037S028 [3] ROLLER BEARING KOB Needle
29 YN15V00037S029 [1] SEAL KOB Floating
30 2441U995S121 [3] PLUG KOB
31 ZD12P01800 [3] O-RING KOB ID 17.80 ± 0.21 x OD 22mm
35 ZS23C10035 [18] SCREW,Hex Socket Head, M10 x 35mm KOB M10x1.50x35mm
36 ZR26X03200 [1] SNAP RING KOB
101 YN15V00037S101 [1] MANDREL KOB
102 YN15V00037S102 [1] SHAFT KOB
103 NSS [1] NOT SERVICED SEPARATELY CON Plate
104 YN15V00037S104 [1] CYLINDER KOB Block
107 YN15V00037S098 [1] PLATE KOB Plate
108 YN15V00037S099 [1] BALL KOB Ball
109 YN15V00037S109 [1] PLATE KOB
112 YN15V00037S112 [1] PISTON KOB
113 YN15V00037S113 [8] SPRING KOB
114 YN15V00037S114 [9] SPRING KOB
115 YN15V00037S115 [3] PLATE KOB Friction
116 YN15V00037S116 [4] PLATE KOB Separator
119 YN15V00037S119 [1] SHIM KOB
132 YN15V00009S027 [1] OIL SEAL KOB
133 YN15V00009S019 [1] RING KOB Retaining

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1
SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

SK260-8 Excavator Final Drive Holland E215B E235B LQ15V00020F1

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
